Roof Mount Systems
Fixed, adjustable, and integrated mounting solutions for residential, commercial, and industrial rooftops.
View Products

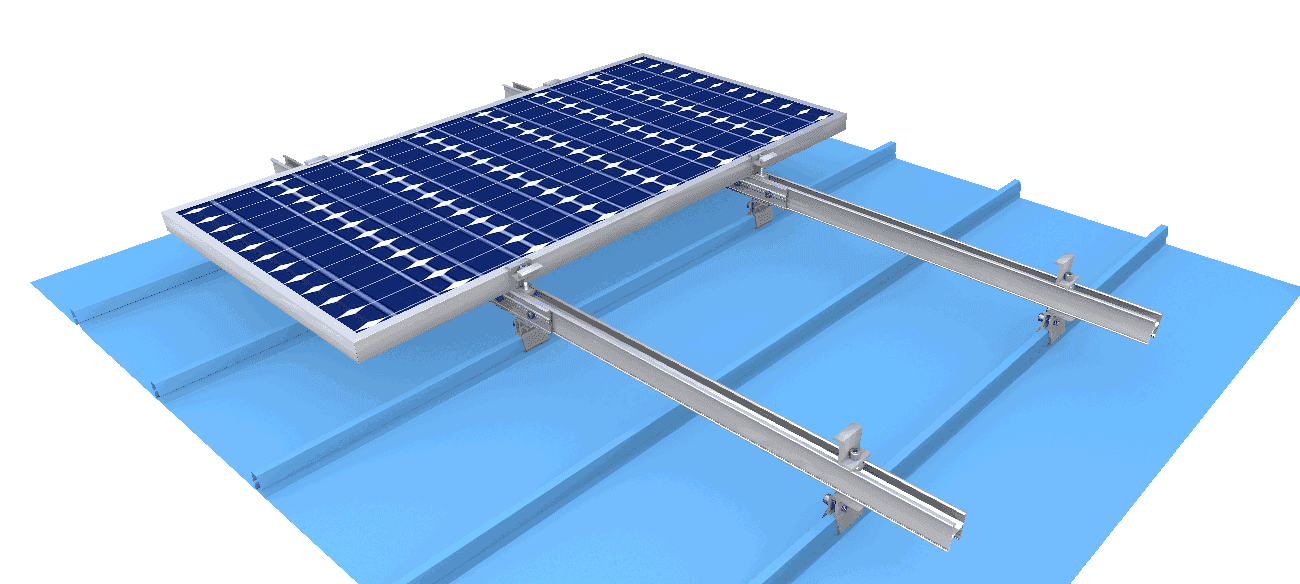

Apollo SEAM
Non-penetrating AL6005-T5 aluminum solar panel mounting system for standing seam metal roofs. Clamp-on installation preserves roof warranty with zero penetrations — rated for 45 m/s wind speed and up to 45° roof slopes.

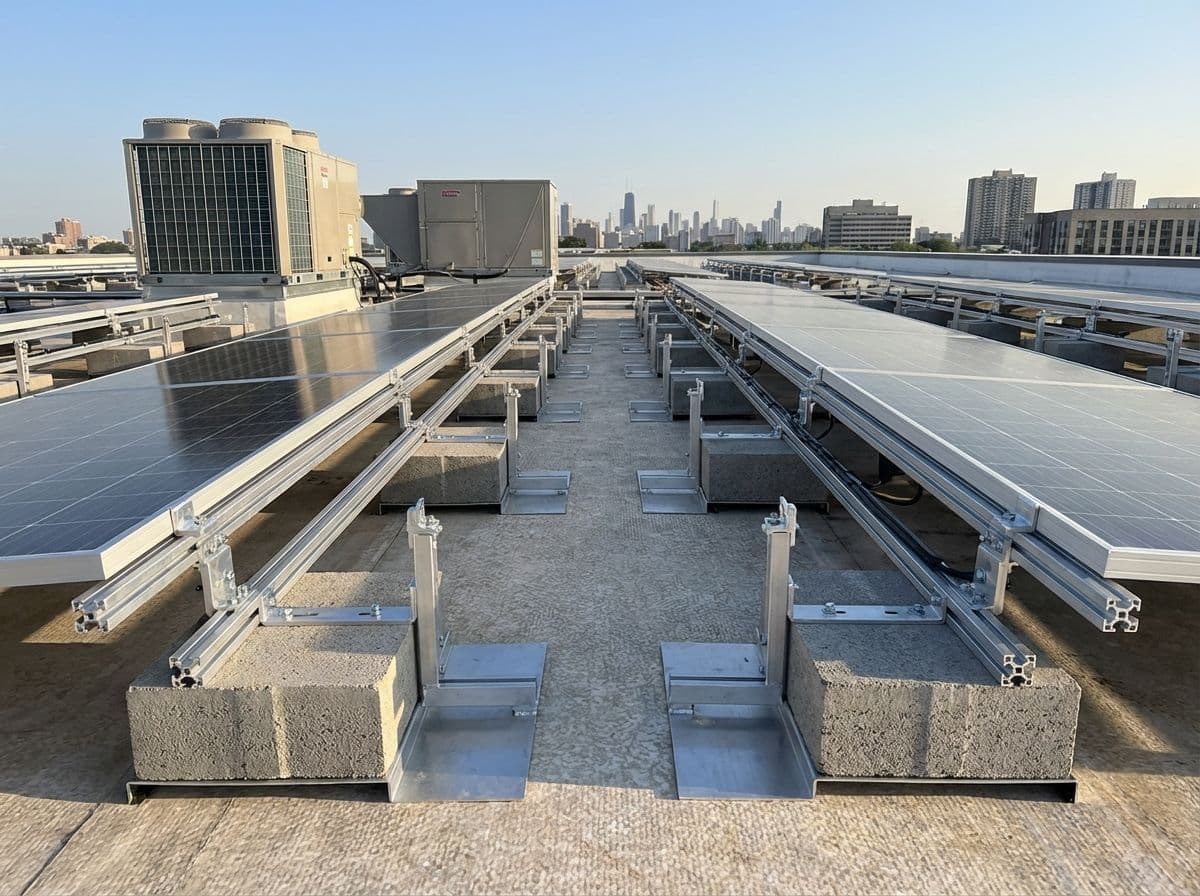

Matrix ECO
The Matrix ECO is a non-penetrating AL6005-T5 aluminum flat roof solar panel mount with adjustable 5-30° tilt and concrete block ballast. Its zero-penetration design preserves roof membrane integrity while delivering 40 m/s wind resistance for commercial and residential flat roof installations.

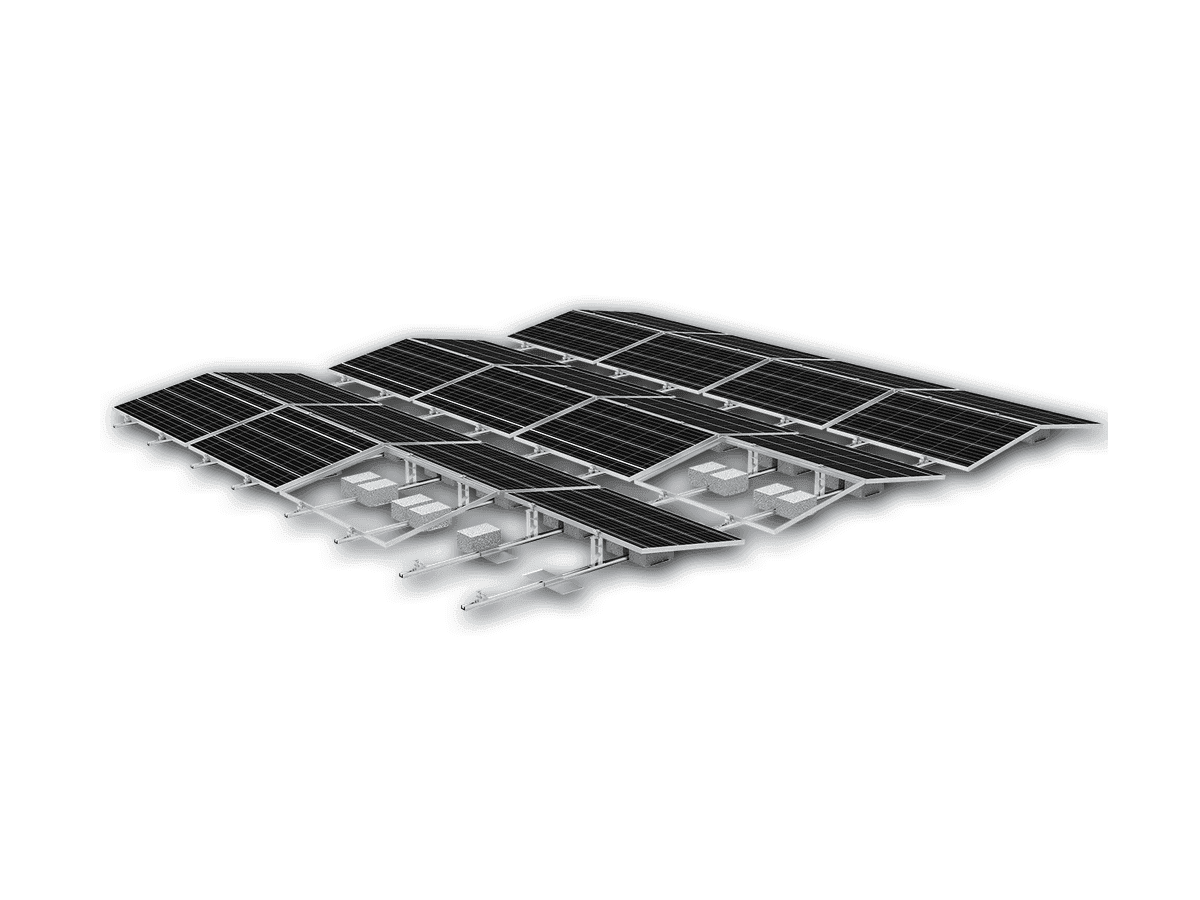

Matrix ELITE
The Matrix ELITE is a premium non-penetrating flat roof solar panel mount engineered with aerodynamic principles for commercial and industrial rooftop installations. Its AL6005-T5 aluminum construction withstands 40 m/s design wind speeds while supporting both south-facing and east-west panel configurations without any roof penetrations.

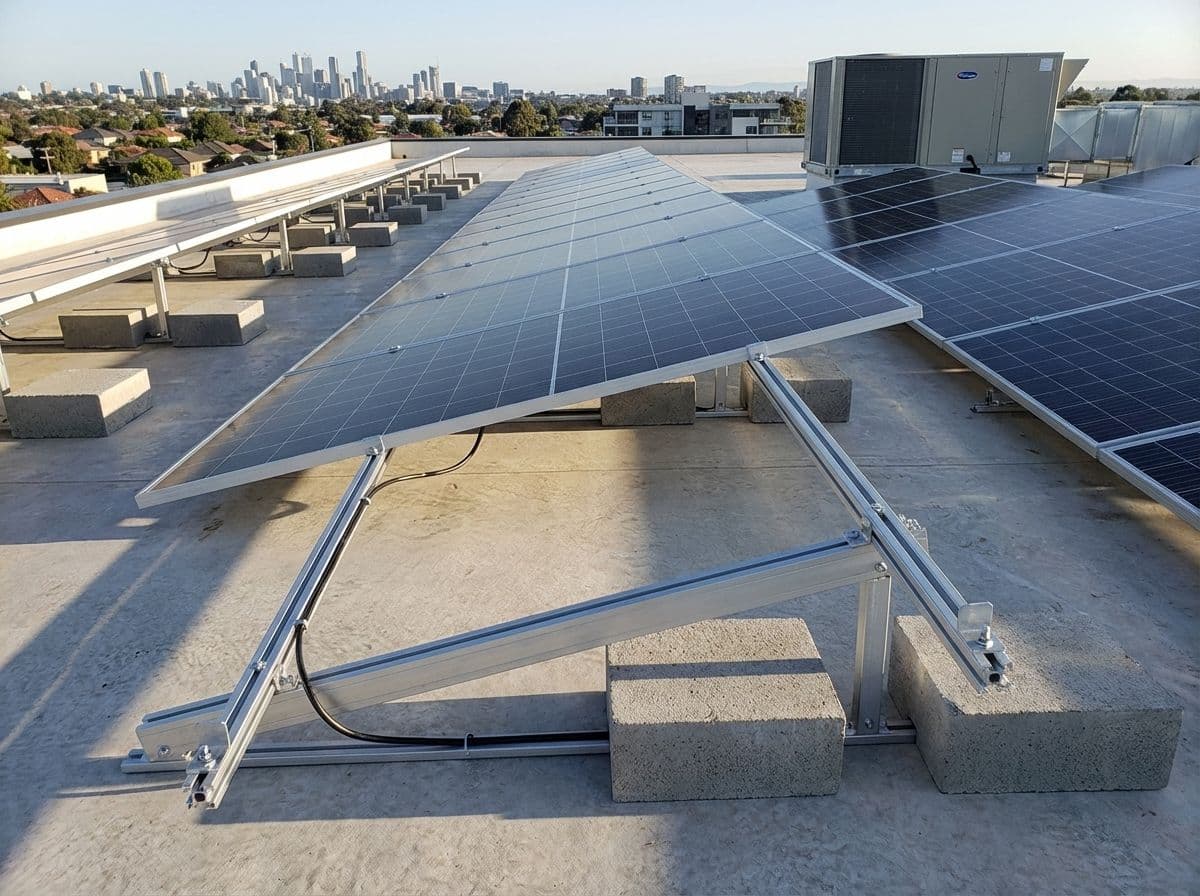

Nova TRIPOD
The Nova TRIPOD is a versatile AL6005-T5 aluminum flat roof solar panel mount supporting standalone, matrix, single-sided, and east-west configurations. Its pre-assembled tripod design with 0-45° adjustable tilt delivers 45 m/s wind resistance for residential and commercial low-slope roofs.

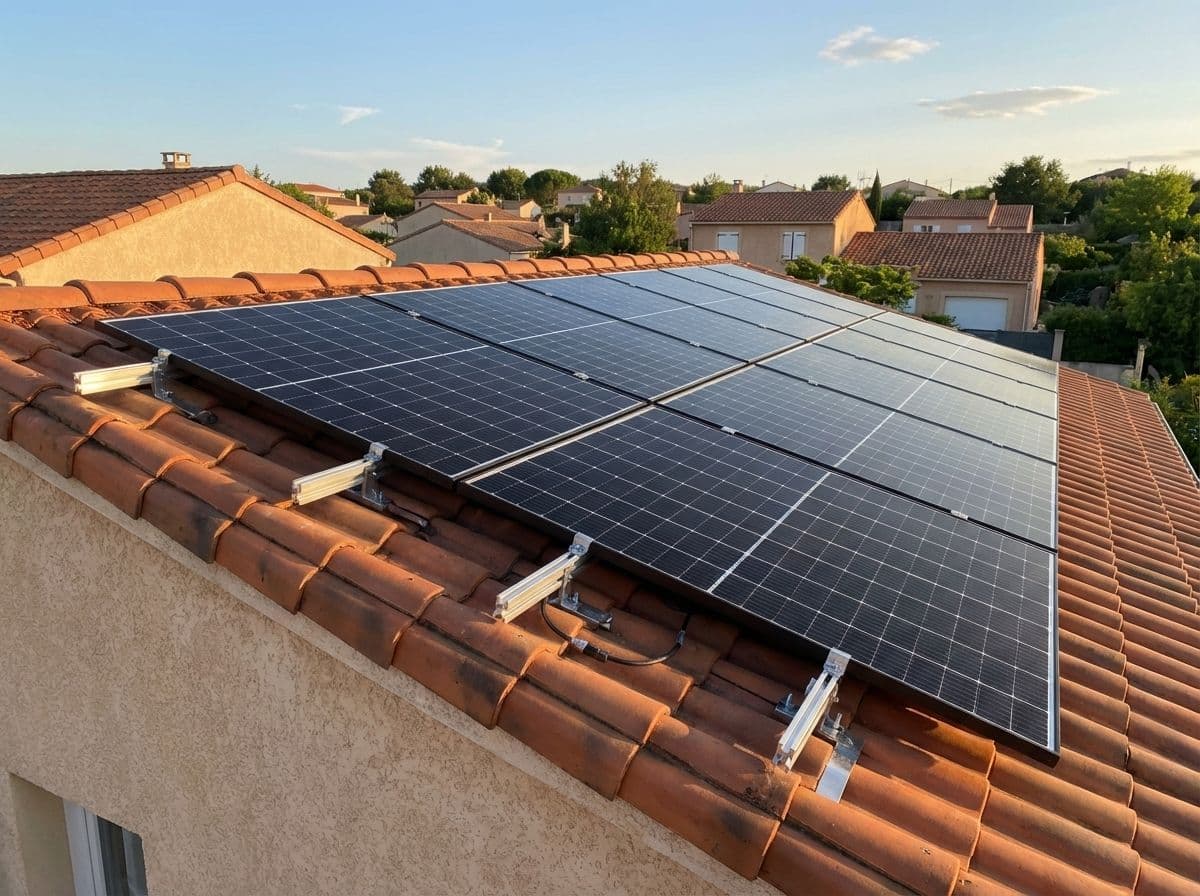

Solaris HOOK
The Solaris HOOK is an AL6005-T5 aluminum tile roof solar mounting system designed for clay, concrete, and Spanish tile residential rooftops. Its universal hook design with SUS304 stainless steel fasteners delivers 45 m/s wind resistance across most tiled roof configurations.
Learn More

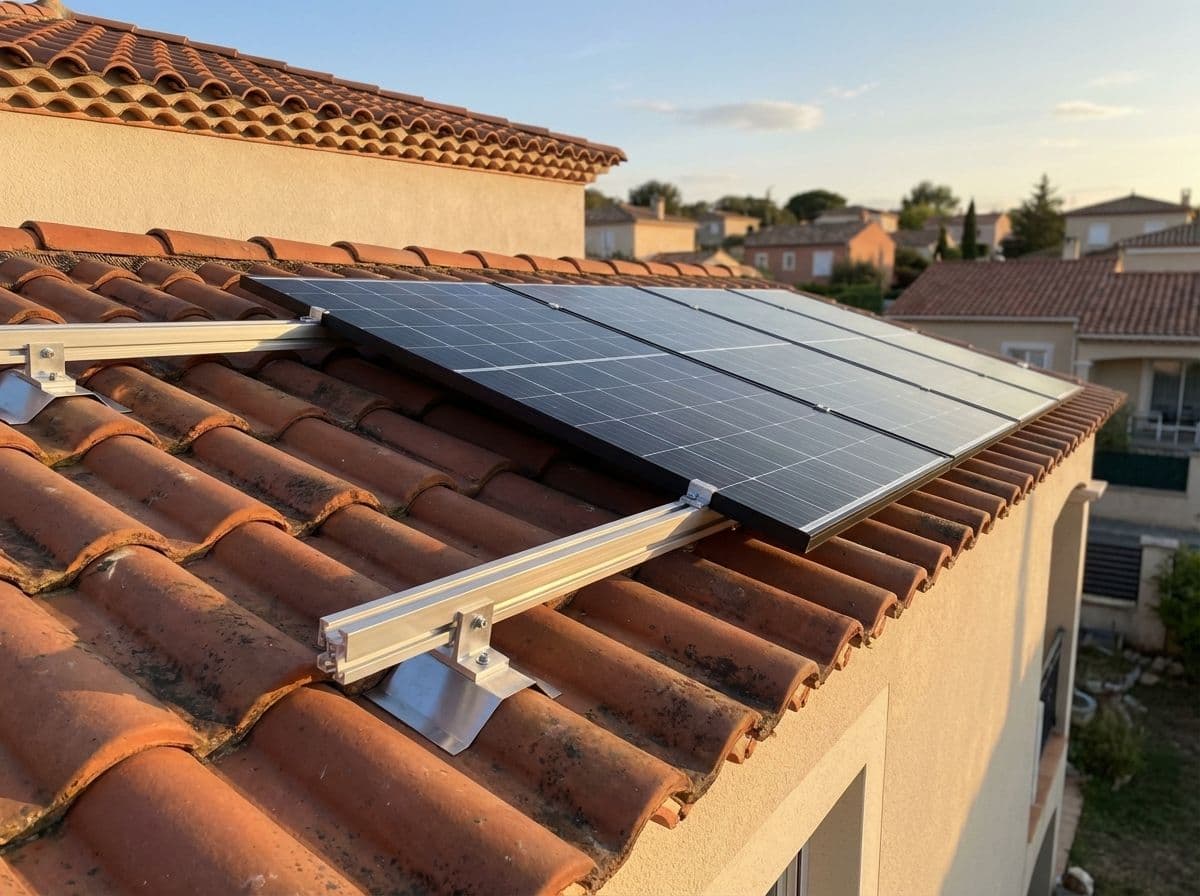

Solaris SHINGLE
The Solaris SHINGLE is an AL6005-T5 aluminum roof mount solar racking system with integrated watertight aluminum flashing for asphalt shingle roofs. Its EPDM-sealed flashing design delivers 45 m/s wind resistance while preserving roof waterproofing integrity on residential installations.
Learn More

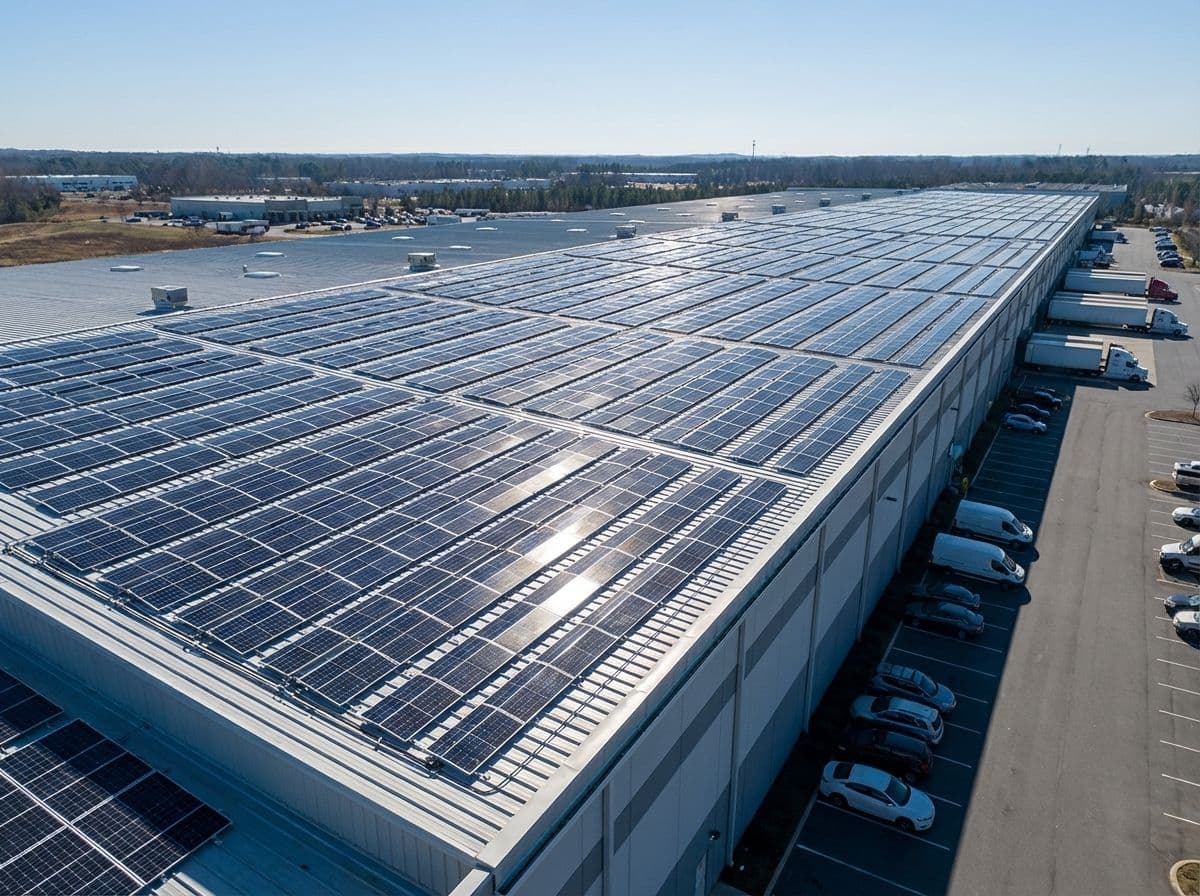

Solaris WAVE
The Solaris WAVE is an all-aluminum metal roof solar panel mount designed for trapezoidal and corrugated metal roofs. Its AL6005-T5 construction delivers 45 m/s wind resistance with rapid installation directly to roofing sheets or purlins.
About Roof Mount Systems
Megawa Solar's roof mount systems are designed for installers and EPC contractors who need reliable, fast-to-deploy mounting solutions across diverse rooftop conditions. Every system in this category uses AL6005-T5 aluminum alloy — the industry standard for solar mounting due to its exceptional strength-to-weight ratio and corrosion resistance.
Tile Roof
Roman, flat, or Spanish clay/concrete tiles on residential rooftops
Metal Sheet Roof
Trapezoidal or corrugated metal roofing on commercial/industrial buildings
Asphalt Shingle Roof
Asphalt shingle roofs common in North American residential construction
Standing Seam Roof
Standing seam metal roofs — non-penetrating clamp attachment
Flat Roof (Budget)
Flat commercial roofs — ballasted, zero penetration, cost-effective
Flat Roof (Premium)
Flat roofs requiring aerodynamic design and architectural integration
Our pitched roof solutions (Solaris HOOK, WAVE, SHINGLE, and Apollo SEAM) each target a specific roof material, ensuring optimal load distribution and waterproofing. For flat roofs, we offer both ballasted systems (Matrix ECO and ELITE) that require zero roof penetration, and tripod-based solutions (Nova TRIPOD) for maximum tilt flexibility.
All roof mount systems are tested to international wind and snow load standards including JIS C 8955, AS/NZS 1170, DIN 1055, and ASCE/SEI 7-05. We provide structural calculation support for commercial and industrial projects, and every system ships with detailed installation guides to minimize on-site labor time.
Frequently Asked Questions
Common questions about roof mount systems from installers, EPCs, and distributors.
The primary factor is your roof material. Tile roofs use Solaris HOOK, metal sheet roofs use Solaris WAVE, asphalt shingles use Solaris SHINGLE, and standing seam metal roofs use Apollo SEAM. For flat roofs, choose between ballasted systems (Matrix ECO/ELITE) for zero penetration or Nova TRIPOD for adjustable tilt angles.
Matrix ECO is our cost-effective ballasted flat roof solution with a 5-30 degree tilt range, ideal for standard commercial installations. Matrix ELITE offers a fixed 10-degree aerodynamic design optimized for wind resistance and architectural appearance, making it suitable for premium commercial buildings.
It depends on the system. Pitched roof systems (Solaris HOOK, WAVE, SHINGLE) attach to the roof structure through the roofing material. Apollo SEAM uses non-penetrating clamps for standing seam roofs. Matrix ECO and ELITE are fully ballasted with zero roof penetration. Nova TRIPOD can be either ballasted or mechanically attached.
Our pitched roof systems are rated for wind speeds up to 45 m/s. Flat roof systems (Matrix ECO/ELITE) are rated for up to 40 m/s with concrete block ballast. All systems are tested to JIS C 8955, AS/NZS 1170, DIN 1055, and ASCE/SEI 7-05 standards. Structural calculations are available for specific project requirements.
Yes. Megawa Solar offers full OEM and ODM services for roof mounting systems. We can customize dimensions, materials, finishes, and packaging to match your brand specifications. Minimum order quantities and lead times vary by customization level — contact our engineering team for details.
Not Sure Which Product Fits Your Project?
Our engineering team can help you select the optimal mounting system for your specific project requirements, site conditions, and budget.
